Phase Detection Method

1.Contact mode phase detection: ≤110kV circuit line

2.Non-Contact mode phase detection: when dispaly between ≥10kV and ≤110kV, it can make phase detecting on the insulation skin of the cable; when the line voltage>110KV, must use non-contact phase detection

Phase Detection Voltage

AC 10V~500kV

Phase Detection Distance

200m

Voice Prompt

"X signal is normal, Z signal is normal,Positive phase; Reversed phase"

Phase Sequence Qualitative

Postive phase:X->Y->Z->X(Phase different: 100°～140°); Reversed phase: X->Z->Y->X(Phase different: 100°～140°)

Phase Detection Qualitative

Same phase:－20°~20°; Out phase: 100°~140°and 220°~260°

Phase Range

0°~360°; Accuracy: ≤± 10°; resolution : 1°

Frequency Range

45.0Hz~65.0Hz; Accuracy: ≤±2Hz; Resolution: 0.1Hz

Electricity Testing Indication

“du--du--du” buzzing sound

Voltage Display

Display the voltage level

Transmitting Frequency

433MHz

Data Storage

200 groups(Power down or replace the battery will not lose data)

Automatic Shutdown

15 minutes without any operation after starting up, the detector will shutdown automatically

Battery Voltage

The host battery shows 4 grip of power, when only 1 or 0 grip, please charge; When the indicator light of the detector flashes quickly, indicates that the battery voltage is low, please charge

Rated Current

Detector: 30mA max; Host: 150mA max

LCD Size

3.5 inch colorful screen; Display area: 71mmX53mm

Instrument Weight

About 8kg(include accessories)

Instrument Dimension

Host 195mmX100mmX45mm; Detector :130mmX65mmX45mm

Insulation Rod Length

Max Diameterof the rod:Φ45mm; Length: contraction state 1000mm; stretched state:3000mm

Insulation Test

The insulation rod stretched to both ends: AC 220kV/rms; Host, detector: AC3700V/rms(between exposed metal and plastic shell)

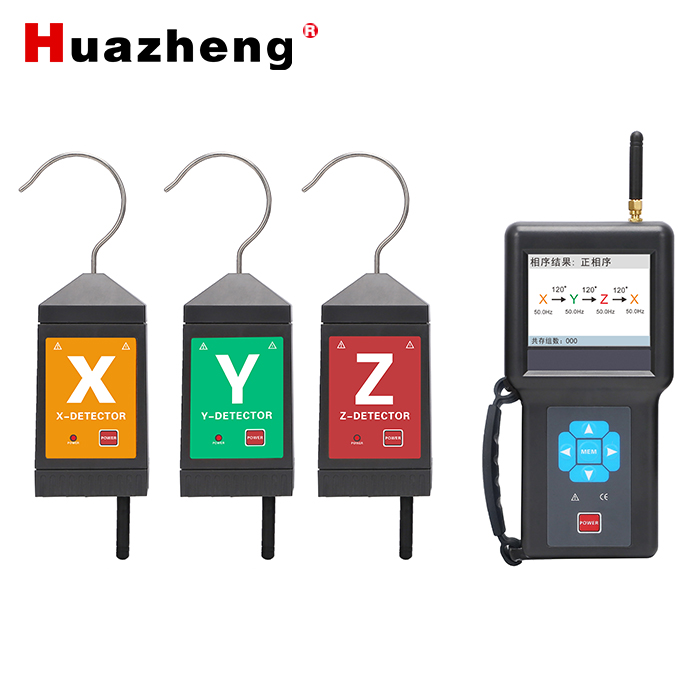

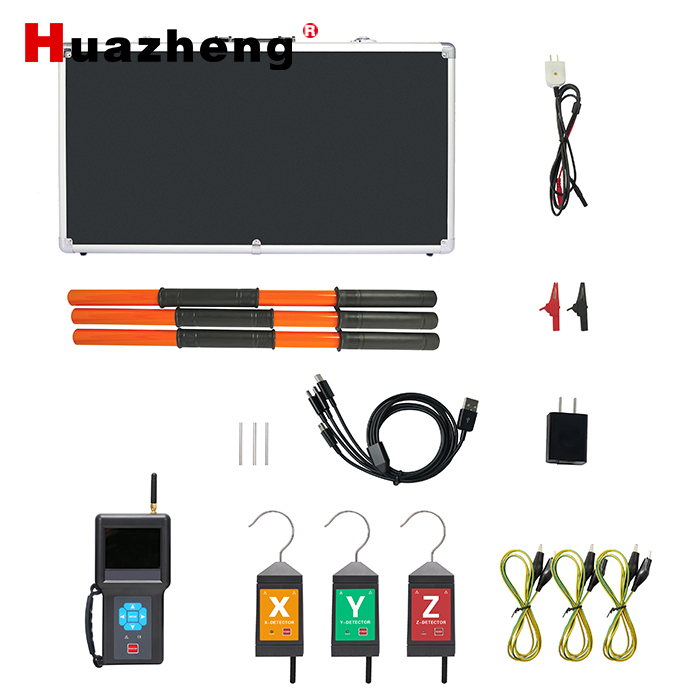

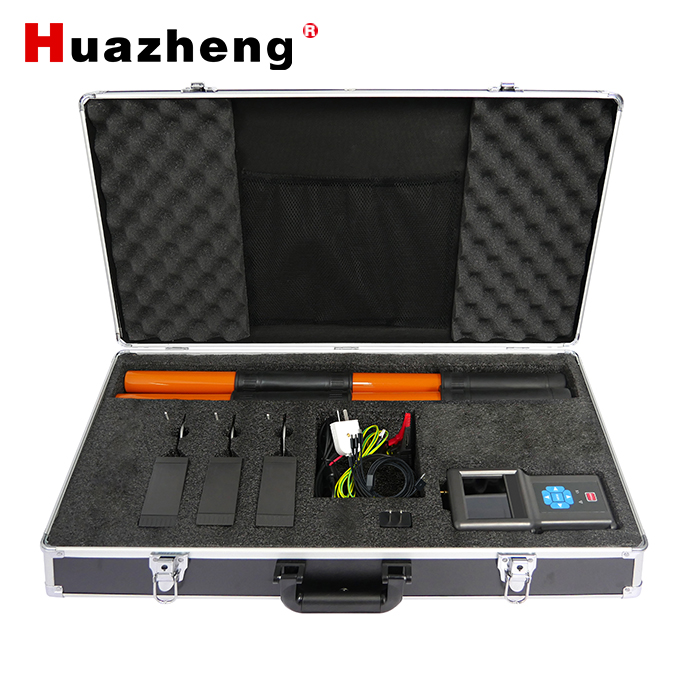

Accessories

Host:1PCS, Detector:3PCS,Pin probe:3PCS, Hook probe:3PCS, Insulation rod: 3PCS, USB Date Cabe/ 4 in 1charge cable:1PCS, Charger Adaptor: 1PCS; Inspection Cable:1PCS; Ring main unit test line :3PCS, Tester case :1PCS
