Huazheng Electric HZ-662 ASTM D86 Distillation Apparatus-Petroleum Oil Tester-Huazheng Electric Manufacturing (Baoding) Co., Ltd.

Product Introduction

Its main business is the production, manufacture and sales of electrical equipment and testing instruments.

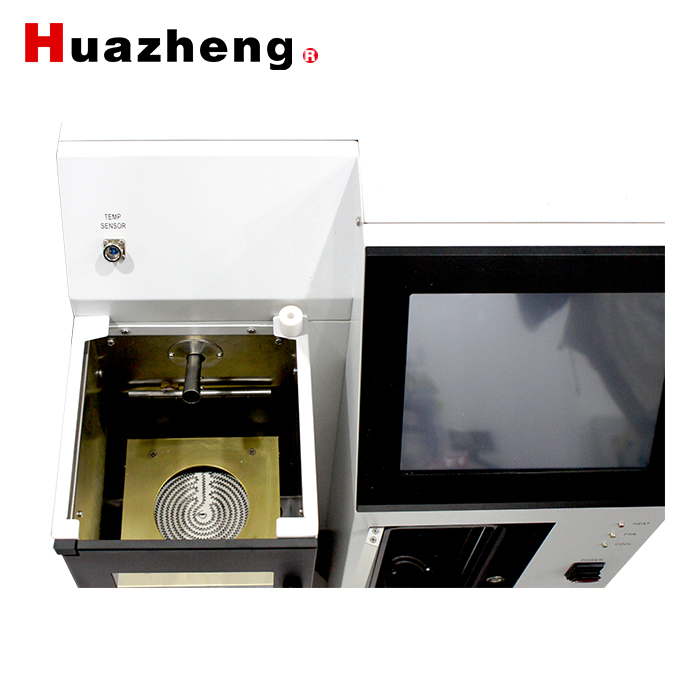

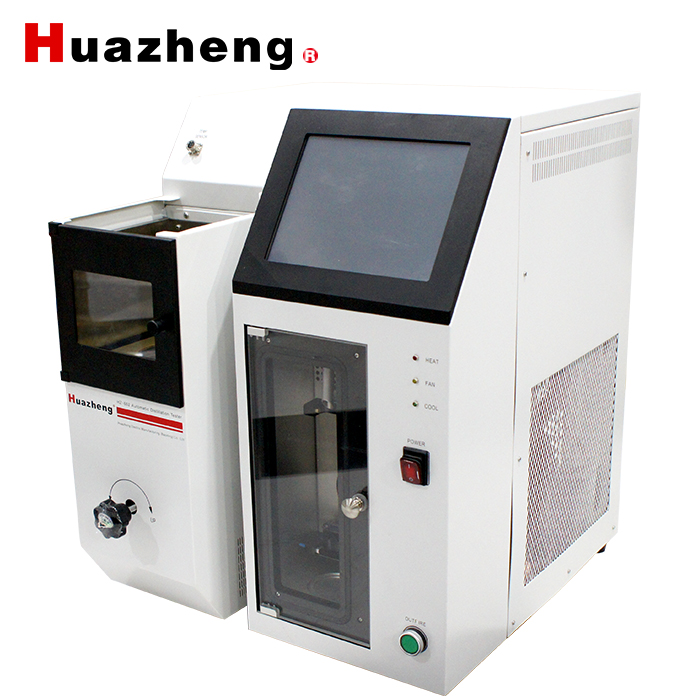

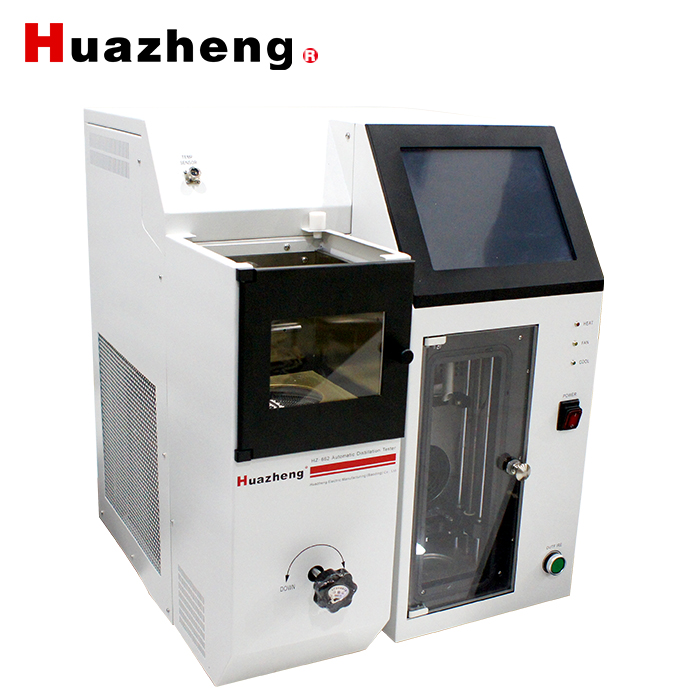

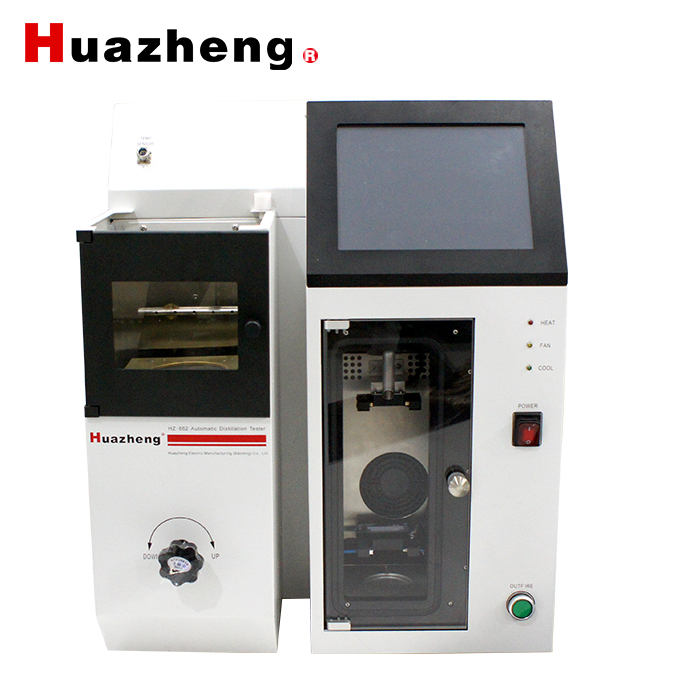

Huazheng Electric HZ-662 ASTM D86 Distillation Apparatus

I.Overview

HZ-662 petroleum product distillation tester is designed and manufactured according to GB / T6536-97 test method. Suitable for natural gasoline (stable light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, special boiling point solvents, naphtha, kerosene, diesel, gas oil, and similar petroleum products.

II.Technical Parameters

1. Power supply: AC220V ± 10% 50Hz

2. Heating power: 2KW

3. Refrigeration power: 0.5KW

4. Steam temperature measurement range: 0℃ ~ 400 ℃

5. Electric furnace temperature measurement range: 0℃ ~ 500 ℃

6. Refrigeration temperature range: 0℃ ~ 100 ℃

7. Refrigeration control accuracy: ± 1 ℃

8. Temperature measurement accuracy: ± 0.1 ℃

9. Volume accuracy: ± 0.1ml

10. Fire alarm system: nitrogen fire

Packing List

No.	Item	Qty
1	Analyzer	1
2	Power cord	1
3	fuse tube（6*30 15A）	1
4	distillation flask	2
5	graduated cylinder（Automatic without ）	2
6	Flask support plate（Φ38）	1
7	Flask support plate（Φ50）	1
8	rubber stopper	4
9	drainage piece	1
10	measuring cylinder cap	1
11	cleaning leads	1
12	temperature sensor	1
13	Printing paper	2
14	User manual	1
15	Certificate of Conformity	1
