I. Summary

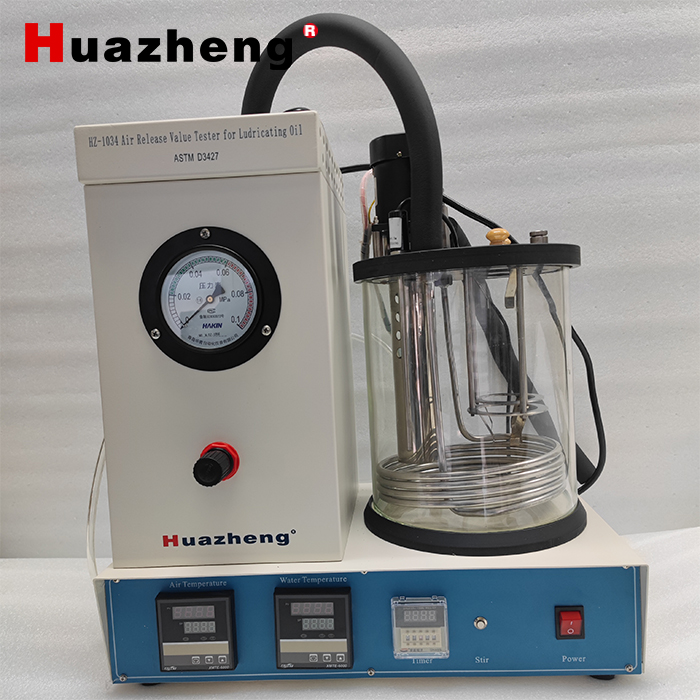

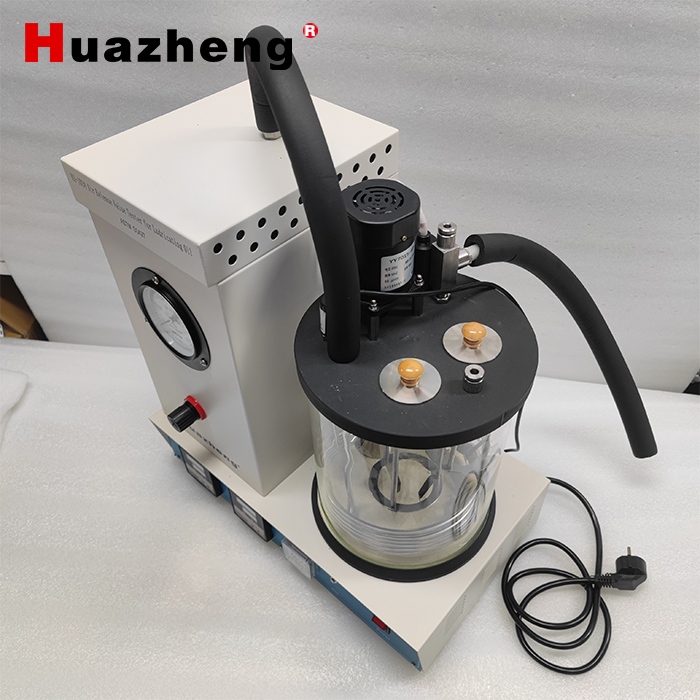

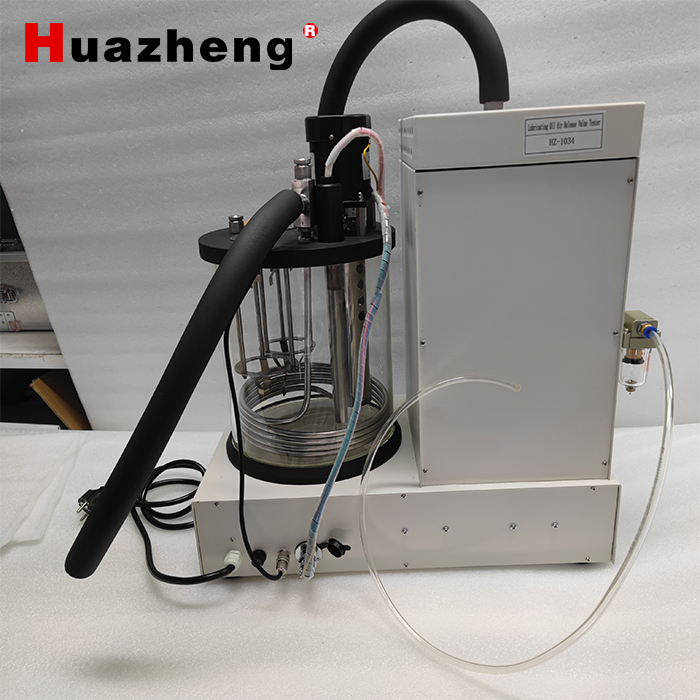

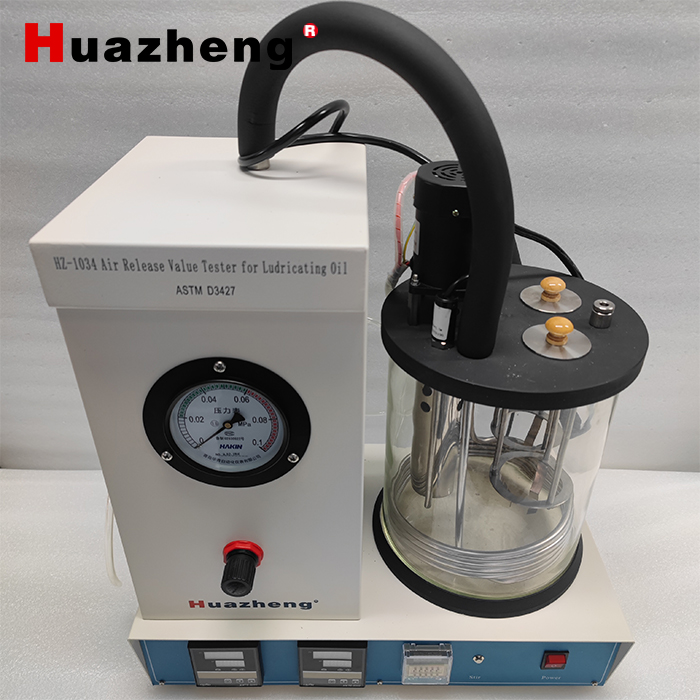

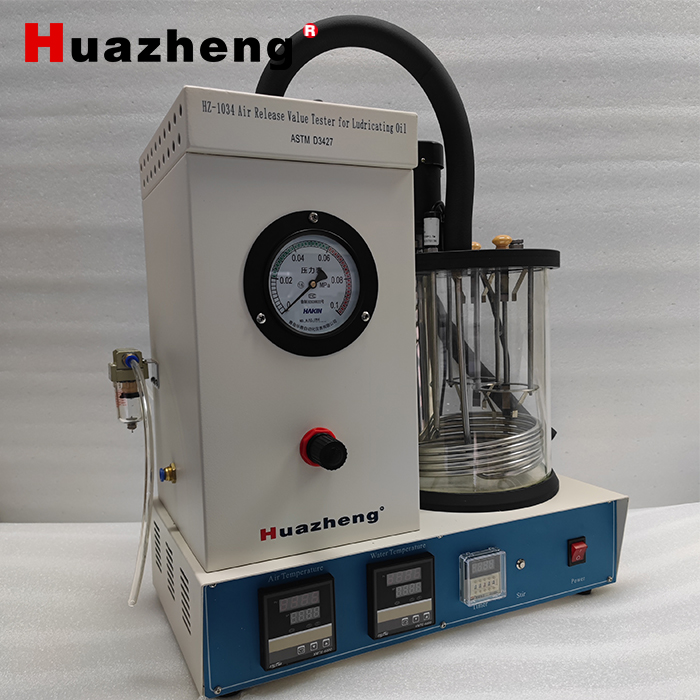

The instrument is designed and manufactured in accordance with SH/T0308 and ASTM d3427. It is applicable to study the air release property of petroleum products such as turbine oil and hydraulic oil.

After heating the sample to a certain temperature, inject compressed air into the sample to introduce small bubbles in the sample. After stopping the air flow, record the time when the volume of entrained air in the sample decreases to 0.2% to evaluate the air release property of the sample.

II. Technical Parameters

a. Working power:  AC 220V±10%  50 HZ

b. Input power: ≤1650W

Water bath heating power: 800W

Air cylinder heating power: 800W

c. Air temperature control range: room~90℃

Air temperature control accuracy: ±5℃

d. Water bath temperature control range: room~90℃

Water bath temperature control accuracy: ±0.2℃

e. Number of test units: 2

f. Pressure measure: 0~0.1MPa
