I. Product Introduction

1.1 Overview

Battery is a key final guarantee for the safe operation of the system as the part of the back-up power. Therefore, the battery should be tested and maintained every quarter or even every month, and the test results should be analyzed. Internationally, the test of battery internal resistance or conductivity has been widely used in the daily maintenance of batteries. The internal resistance or conductance of the battery has been recognized as an important parameter to accurately and quickly judge the health of the battery.

1.2 Product Introduction

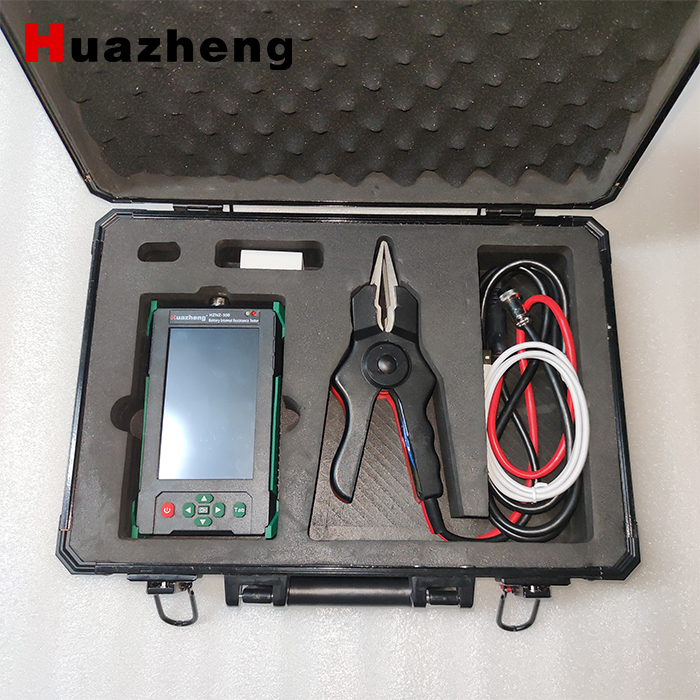

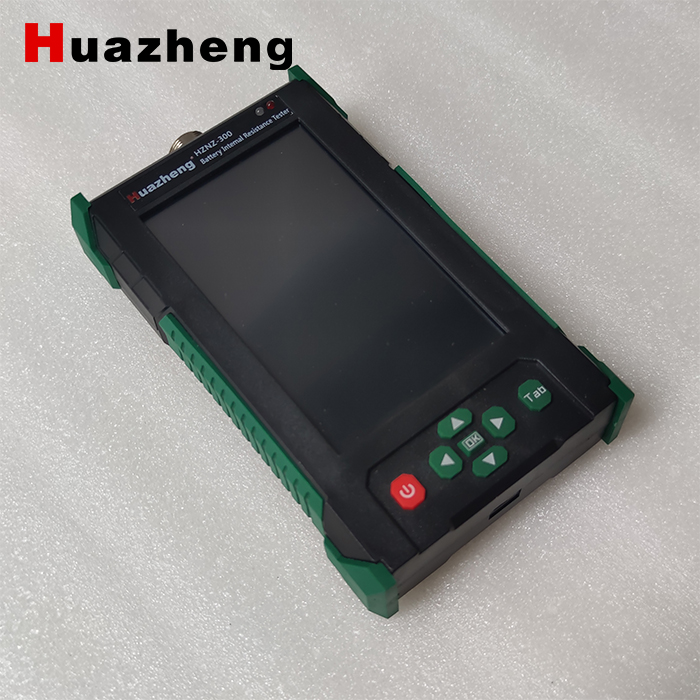

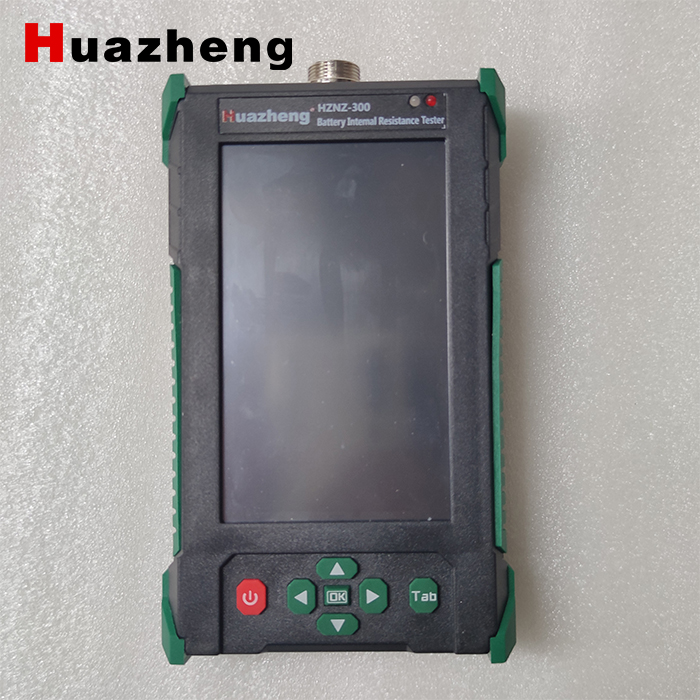

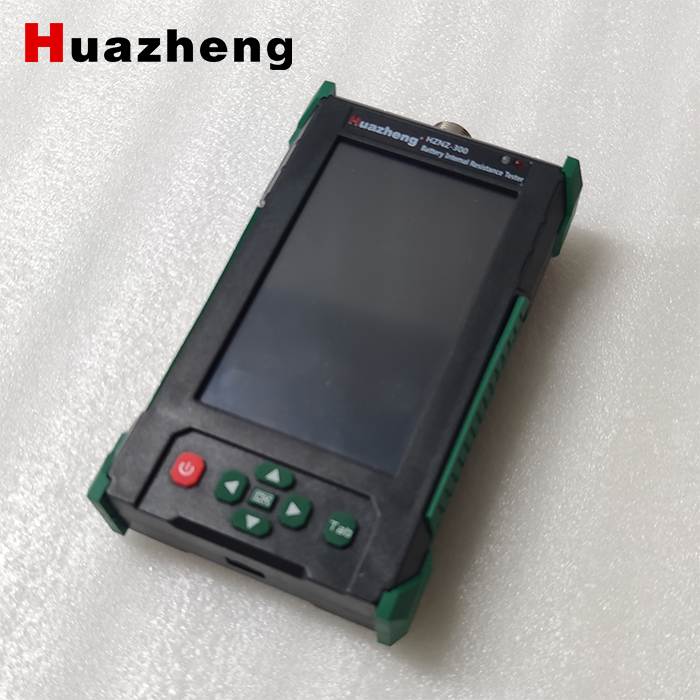

Battery Internal Resistance tester adopting colorful resistive touch screen is a digital and portable tester for fast and accurate measurement of battery running status parameters, which is flexible and convenient to use by finger touching and pen touching .

Battery Internal Resistance Tester is designed using the advanced AC discharge measurement method to test voltage, resistance and conduct of cell battery online. It can store , process the detected data and alarm the battery failure. The tester can accurately and effectively discern the condition of cell battery. The instrument saves, queries, deletes and exports the test data. The upper computer software analyzes and displays the test data through various charts and graphs . It automatically generates the battery test report.

1.3 Product Features

l Two operation ways : operation by colorful touch LCD screen and button . It is easy to operate to meet users with different usage habits.

l Data storage method : internal storage and external storage. It can save 300 sets of test data and each groups 500 cell battery data for search and analysis.

l Automatical identification measurement function of postive connection and reverse connection.

l It has the data record and qury function of voltage , internal resistance , conductance, capacity . It can directly estimate and analyze the battery remain capacity .

l Powerful data management software, friendly interface. It has the function of data management, print , analysis , report statistics, automatic generation of test reports.

l Less than 0.5kg , Handheld design, automatic measurement in the whole process.

l Large capacity lithumn battery for power supply and long time measurement

l Compact size, Easy carry ; Exquisite appearance , excellent struction ; Beautiful interface, smooth operation.

1.4 Technical Specifications
