I. Product Introduction

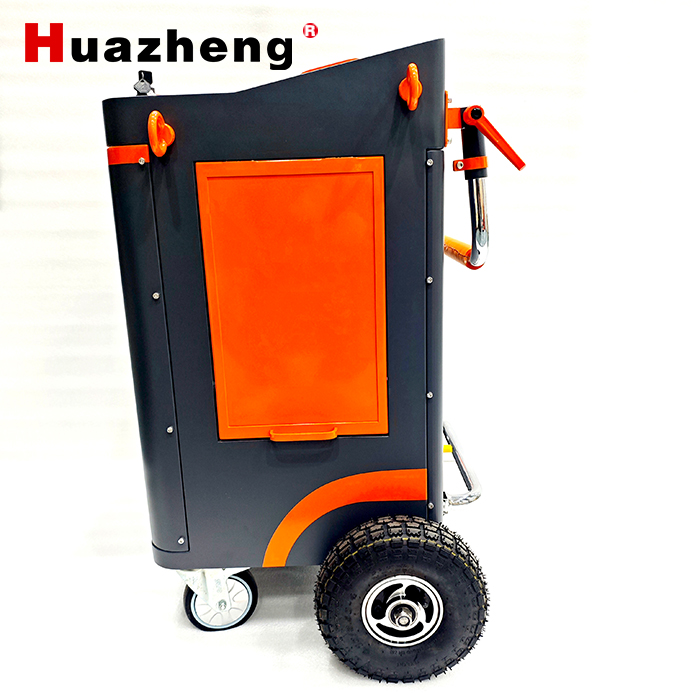

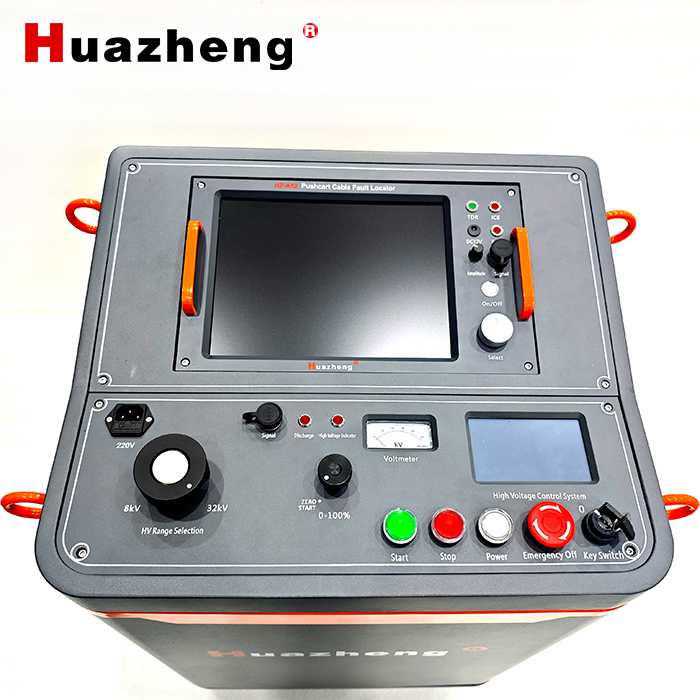

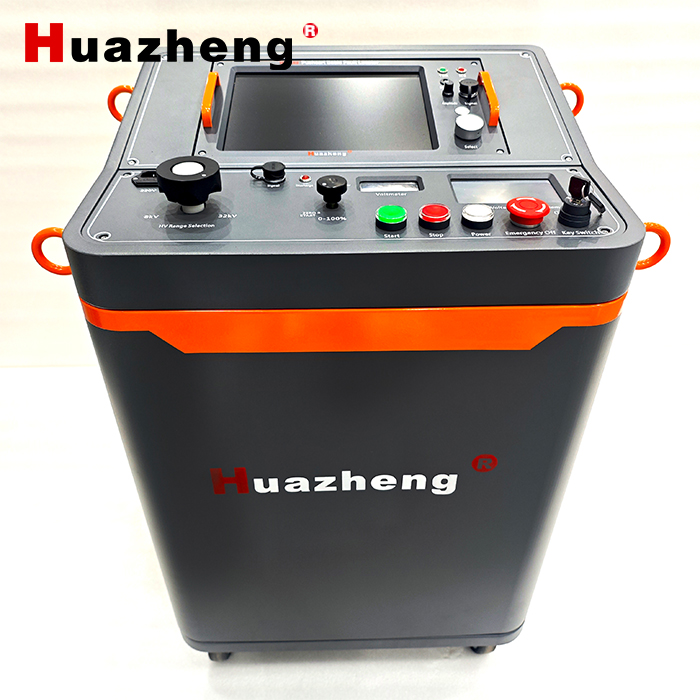

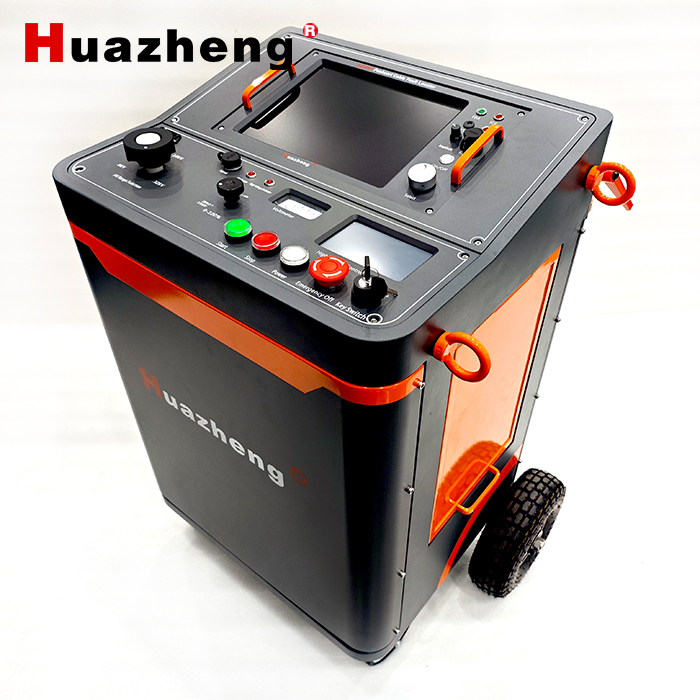

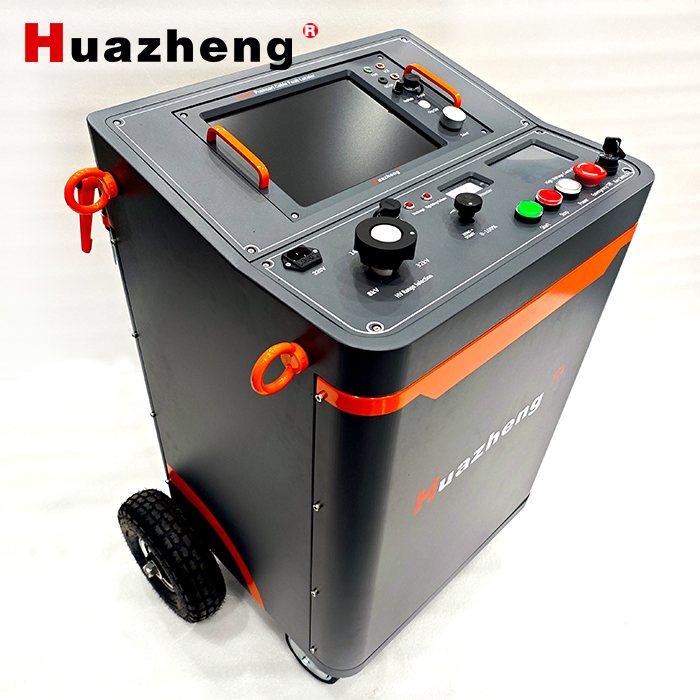

HZ - A52 trolley- type cable fault testing system is a product of our company's long-term commitment to power cable fault testing. To meet the rapid development of the power industry, it highly integrates traditional, independent cable fault location measurement, an integrated power frequency high-voltage power supply, a multi-pulse generator, and automatic discharge into a single trolley-type cable fault testing system. The system features a compact and safe high-voltage design with embedded distance measurement units , and strong anti-interference capabilities. This system is used for measuring the distance to various power cable faults . The testing software automatically identifies the fault location and reads the distance, making cable fault testing truly convenient, simple, efficient, and safe, providing ease of rapid testing for power cable faults.

II. HZ-A52 Handcart Cable Fault Tester: Advantages and Features

Through continuous development and innovation, the product possesses the following characteristics:

 With built-in three-stage capacitors, it is suitable for testing various main insulation faults in power cables of different voltage levels.

 It boasts rapid voltage boost, high power output, saves time, and reduces labor costs .

 the power frequency high- voltage power supply unit embodies human-machine interaction, making operation convenient and the display simple and intuitive.

 The system is equipped with a 25m test line, which facilitates cable fault testing at long and short distances and in complex environments.

 The entire machine is designed according to European standards and has a key authorized for use by professionals.

 The entire unit has a grounding circuit and a step voltage monitoring and protection system to protect equipment and personal safety in real time.

 It features an emergency stop button and automatic discharge function, automatically reducing voltage and discharging during emergency stop or shutdown, ensuring safety and reliability .

 The high voltage output has single pulse and continuous pulse functions, which can be used in conjunction with a fully intelligent multi-pulse cable fault tester and a precise locator to find fault points .

III. High-voltage unit

Technical indicators

 Output voltage: 0-32kV continuously adjustable.

 Start the high-voltage equipment with the authorized key.

 Built-in capacitors: Three capacitor options : 64 μF /8kV , 16 μF /16kV, and 4 μF /32kV.

 Maximum impact energy: 2048J.

 Operating modes: continuous flash and single flash.

 Continuous pulse period: 1 to 10 seconds.

 Display device: 5-inch color LCD with a resolution of 800×480.

 Prompt format: Chinese prompts, with intuitive numerical display.

 The control software operates stably under high voltage.

 Automatic discharge function: After pressing the emergency stop button or powering off, the instrument will automatically discharge all remaining power.

 Input voltage: AC220V±10%/50Hz.

 External dimensions: 750mm×560mm×915mm .

 Weight: 130kg .
