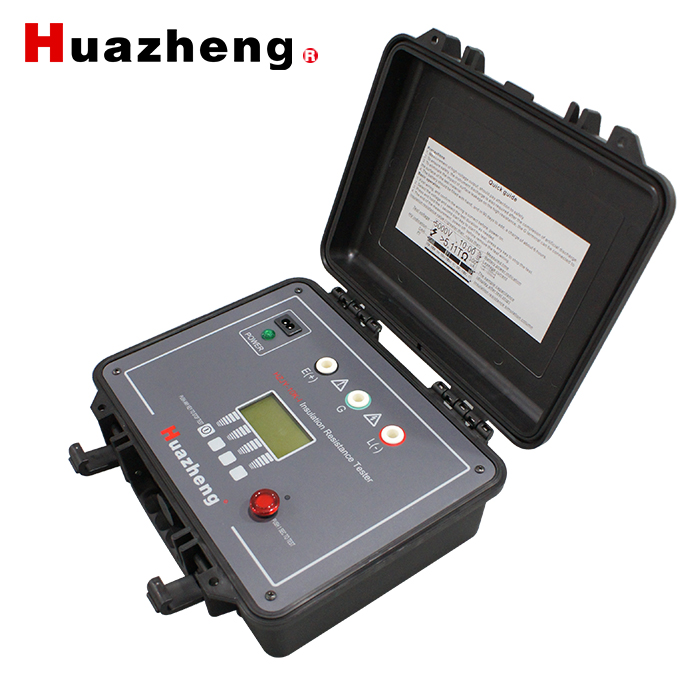

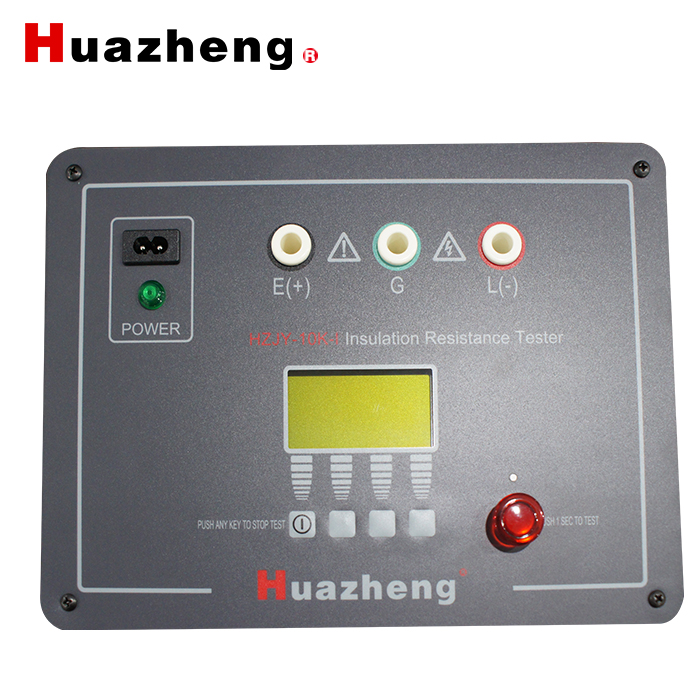

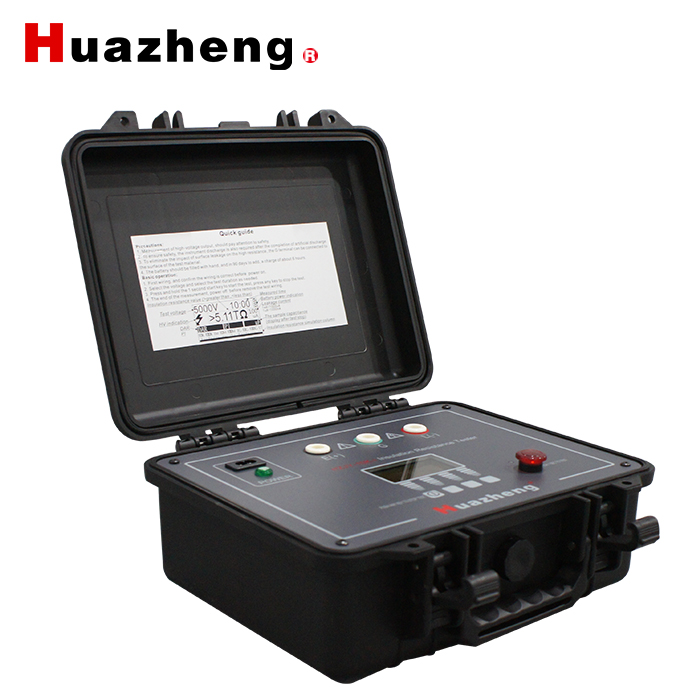

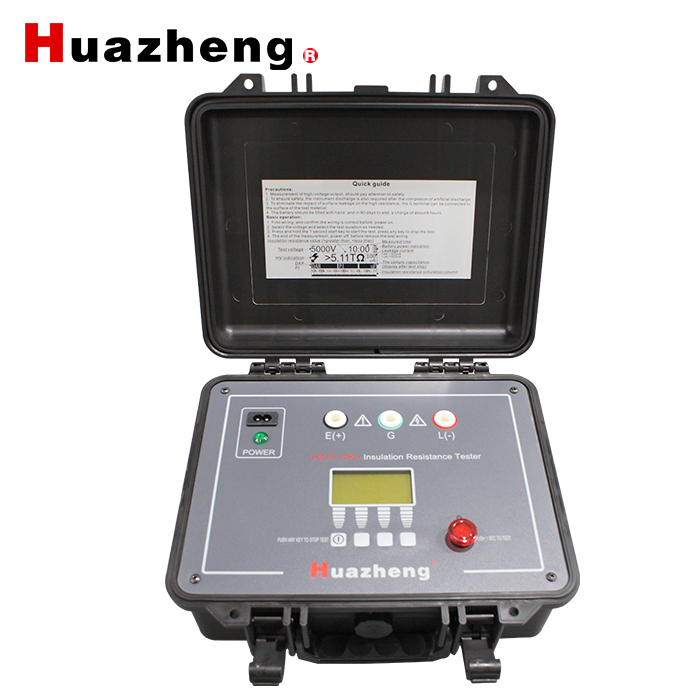

Huazheng Electric HZJY-10K-I 10kV IR Insulation Resistance Tester

Feature

Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ.

● Strict accordance with the safety standards for design

● Insulation resistance range 10TΩ @ 10 kv

● Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered.

● Automatic display polarization index (PI), Induced electric absorption ratio test values (DAR), and can test the leakage current and capacitance.

● The anti-interference performance is superior. When the interference current reaches 2mA, the instrument still ensures the test accuracy.

● Rapid discharge of capacitive test products, no need for manual discharge when testing cables, automatic rapid discharge of instruments.

●2 power supply modes: the battery is powered by lithium ion battery, and the battery life can reach 4 hours (10000V @100m test resistance). It can also be charged while in use. In case of power failure, it can be automatically converted from AC power supply to battery power supply.

● Insulation resistance simulation column.

● Digital filtering functions, external influence deviation display value causing mitigation point using filter function.

● Perfect protection function, and the spare fuse prompt functions.

Specification Parameter

● Safety Standard

IEC 61010-1    CAT.IV  600V

IEC 61326      EMC specification: test, control and electrical equipment for testing

IEC60529 IP64 （Outer closed state）

● AC Power：220V±10%,50/60 HZ,20 VA

●battery：16.8V Lithium ion rechargeable battery

● Battery Life：10000V@100M， 4 hour

● size（L x W x H）：26cm x 20cm x 16cm

● weight：3kg

● Test voltage accuracy: the nominal value  100% to 110%

● Voltage measurement accuracy：5%+3V

● Current test range：10mA

● current measure precision：5%+0.2nA

● short-circuit current： 5mA

● Capacitance test range：20uF

● Capacitance testing accuracy：15%+0.03uF

● Capacitor discharge rate： from 10000V to 10V，0.5S/µF

● Insulation resistance testing range and accuracy （T:23±5ºC ，RH :45 – 75%）
