1、 Application scope

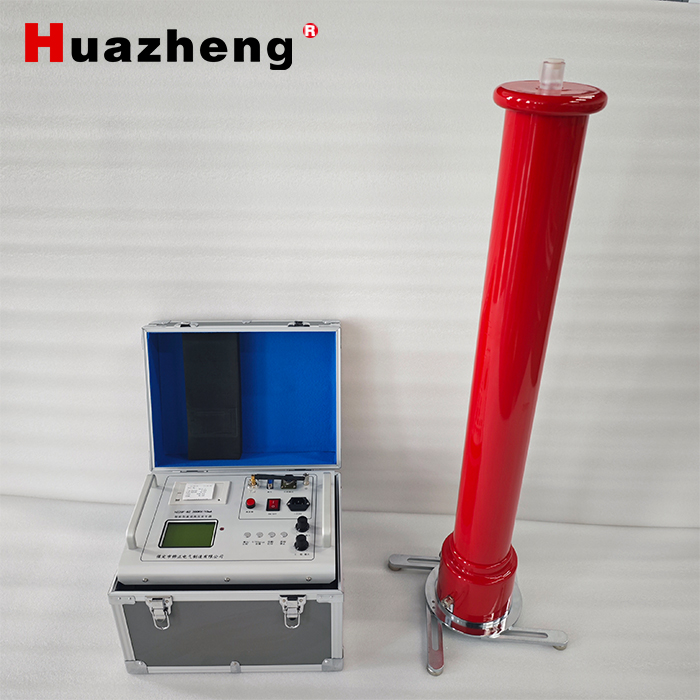

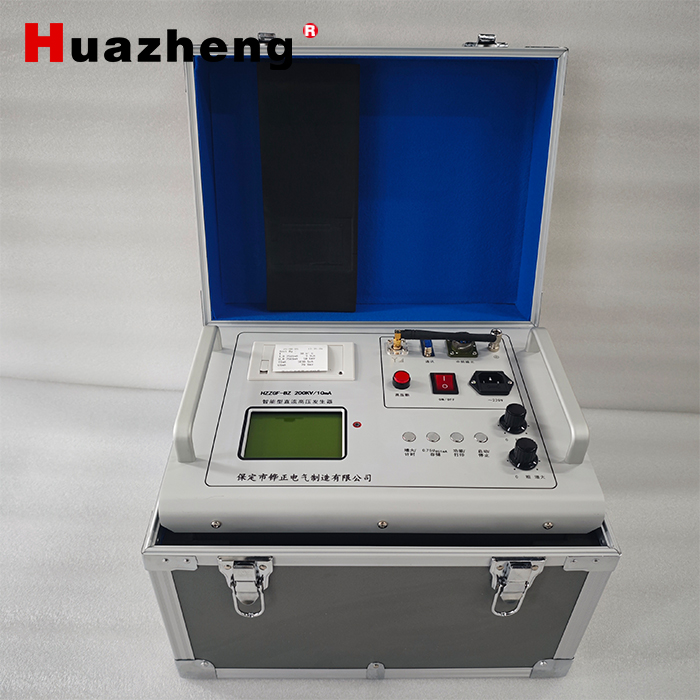

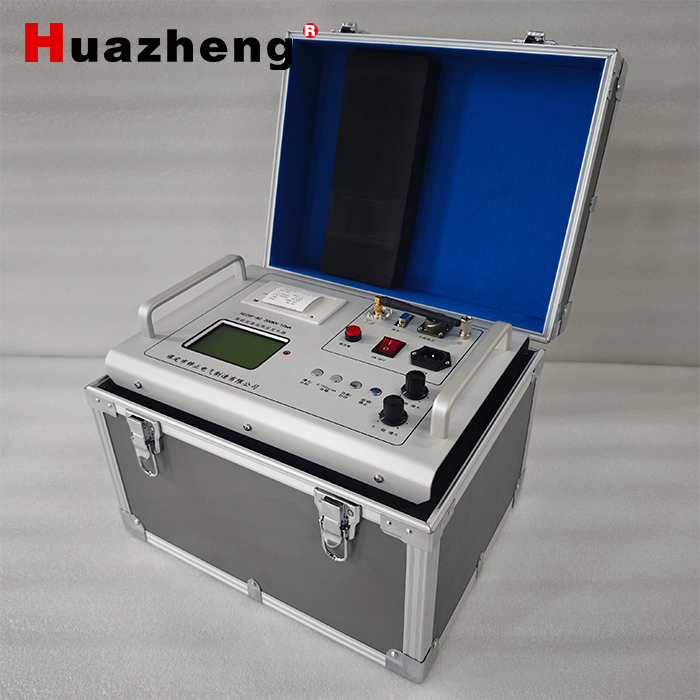

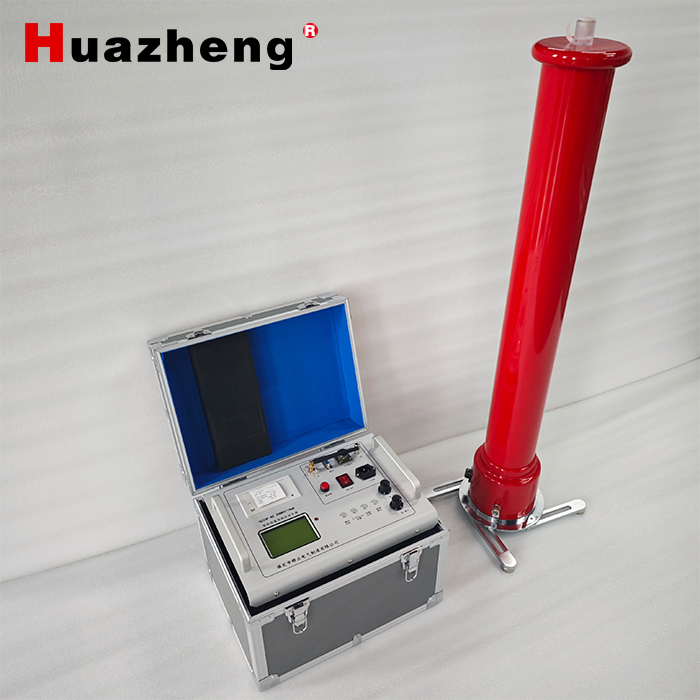

Intelligent DC high-voltage generators are mainly suitable for power departments, industrial and mining, metallurgy, steel and other enterprises to conduct DC withstand voltage tests or DC leakage current tests on high-voltage electrical equipment such as zinc oxide lightning arresters, power cables, transformers, circuit breakers, generators, etc.

Intelligent DC high-voltage generator. By applying AIPWM technology, the inaccurate linearity of PWM technology has been adjusted, resulting in a significant improvement in instrument accuracy. And AI technology is used to set overvoltage protection and overcurrent protection, replacing the problem that digital dial switches can only set voltage values, cannot set current values and voltage drift. On the basis of maintaining the manual 0.75UDC1mA function button, AI fully automatic zinc oxide arrester measurement, cable segmented voltage withstand test, automatic voltage withstand test functions are added, and test reports can be directly printed and saved Retained manual mode, added printing function under arbitrary voltage and current, as well as total time T1 and segmented timing T2 functions. The instrument has added perpetual calendar and time functions, and the experimental report includes time and date.

Note: When connecting a wireless transmission microampere meter, the host needs to be set to wireless microampere meter mode! When wireless mode is not required, simply set the host to internal microampere meter mode! (Optional wireless microampere meter)

2、 Technical features

·Fully automatic testing of zinc oxide lightning arrester, displaying the process of voltage rise and fall and waiting time. Display and print voltage and current waveforms.

·Fully automatic cable segmented voltage withstand test, displaying the boosting process and waiting time. Display and print voltage and current waveforms.

·Automatic voltage withstand test, displaying the process of voltage rise and fall, and showing the waiting time. Display and print voltage and current waveforms.

·By using AIPWM technology, the inaccurate linearity of PWM has been adjusted, resulting in a significant improvement in accuracy. Ripple coefficient ≤ 1%.

·Equipped with total time T1 and segmented timing T2, as well as printing function under any voltage and current.

·The instrument has added perpetual calendar and time functions, and the experimental report includes time and date.

·Data return function: equipped with Bluetooth mode to connect and communicate with mobile devices

·The leakage current is transmitted back to the control box through wireless data transmission technology using a wireless transmission microampere meter, greatly protecting the safety of experimental personnel. (Optional)

3、 Main technical performance, specifications, and working methods

1. Voltage output 0-60kV-120KV -200KV-300KV accuracy ≤ 1% ± 1 word

2. Current output 0-2000uA -3000uA -5000uA-10000uA accuracy ≤ 1% ± 1 word

3. Equipped with high-precision 0.75UDC-1mA single touch button, accuracy ≤ 1%

4. It has the functions of fully automatic testing of zinc oxide lightning arresters, segmented voltage resistance of cables, and automatic voltage resistance

5. It has the function of manually adjusting voltage output.

6. Working mode: intermittent use: rated load 30 minutes, 1.1 times rated voltage use: 10 minutes

7. Working environment: Temperature: -10 ℃ to+40 ℃

8. Relative humidity: not exceeding 85% at room temperature of 25 ℃ (no condensation)

9. Altitude: below 1500 meters
