I. Overview

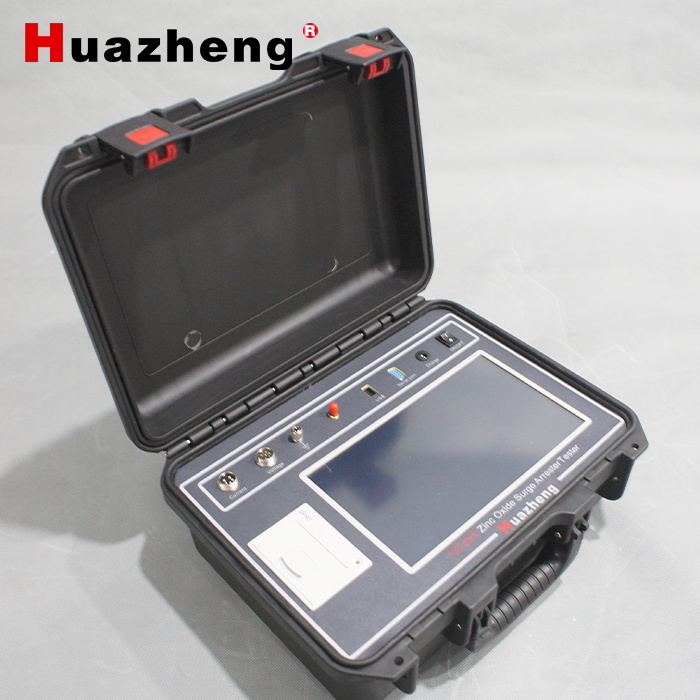

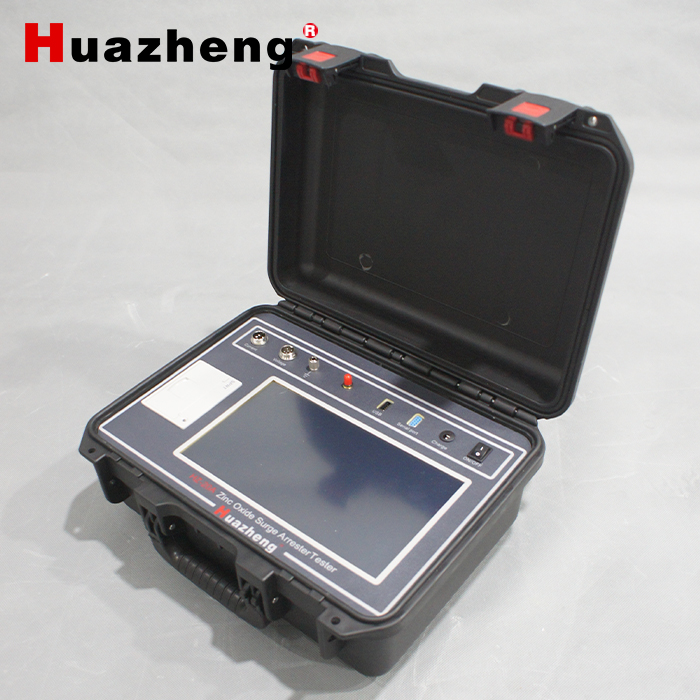

 Wireless Zinc Oxide Arrester Tester is a special instrument for on-site and laboratory detection of lightning arrester’s electrical parameters, widely used in on-line monitoring of zinc oxide surge arresters (online test) and laboratory (offline maintenance) test. Meet the People's Republic of China power industry standard "DL474.5-92 field insulation test implementation guidelines - arrester test" to the surgery. The instrument uses microcomputers for sampling, control and other advanced technologies to measure the full current, third harmonic, resistive current, resistive current peak, capacitive current, active power, etc. of zinc oxide surge arresters at power frequency voltages. And display the voltage, current waveform and printout test data. Large-screen liquid crystal display, English menu prompt operation, so that the human-machine exchange function is stronger, while providing on-site waveform display. This instrument has the characteristics of simple wiring, high measurement accuracy, and strong reliability. The instrument is small in size, light in weight, and has an integrated design for easy carrying and field operations.

II.Main Technical index

1.Technical parameters

（1）voltage and current parameters:：

（2）working temperature: -10 °C ~ 40 °C

（3）the environmental humidity : ≤ 85% no condensation

（4）storage temperature: -20 °C ~ 50 °C

（5）Overall dimensions: 320×260×135(mm)

（6）the instrument weight: 5kg (does not include the test line and cable box)

III.Main functions and features

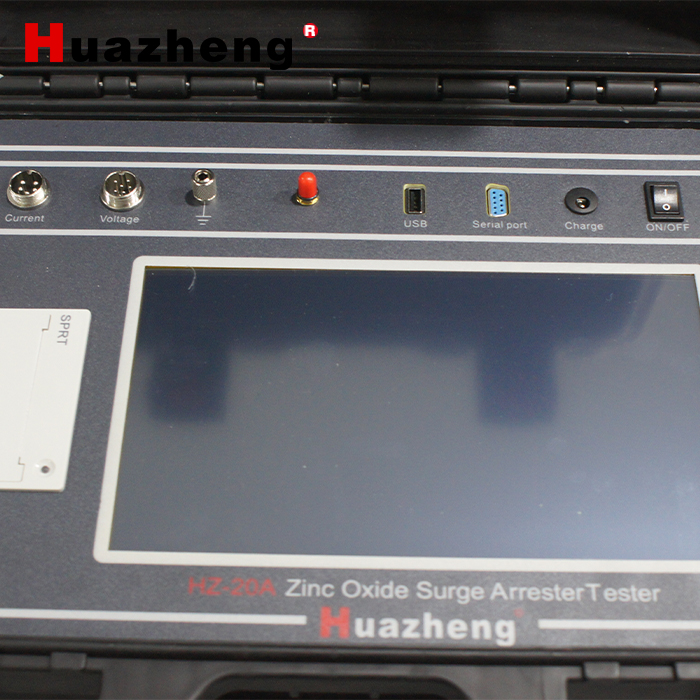

1、The machine adopts 1024×600 dot matrix 65K color resistance touch screen.

2、High-precision sampling and processing circuit, advanced Fourier harmonic analysis technology, more reliable data.

3、With the function of measuring harmonic content, it can measure single phase or three phase simultaneously.

4、With resistive current base wave peak output function.

5、The instrument has built-in large storage capacity. Can store test data, waveform, harmonics and other large amount of recording information. It can save 200 groups of measurement records in the cycle update mode.

6、The instrument is equipped with a U disk interface, which can store any group of test records (the capacity is limited by the size of U disk).

7、The voltage test line of the instrument is equipped with insurance to prevent misconnection. The voltage and current plug of the instrument has the function of misconnection prevention.

8、The instrument is equipped with a wireless module for wireless voltage acquisition and wireless measurement with the host.

9、The instrument has a high precision real-time clock, which can be calibrated by date and time.

10、The instrument is equipped with a high-speed miniature thermal printer, which can print measurement data (optional).

11、The instrument has a large capacity lithium battery, which can work continuously for 6 hours.

12、It can be connected to Bluetooth for remote control
